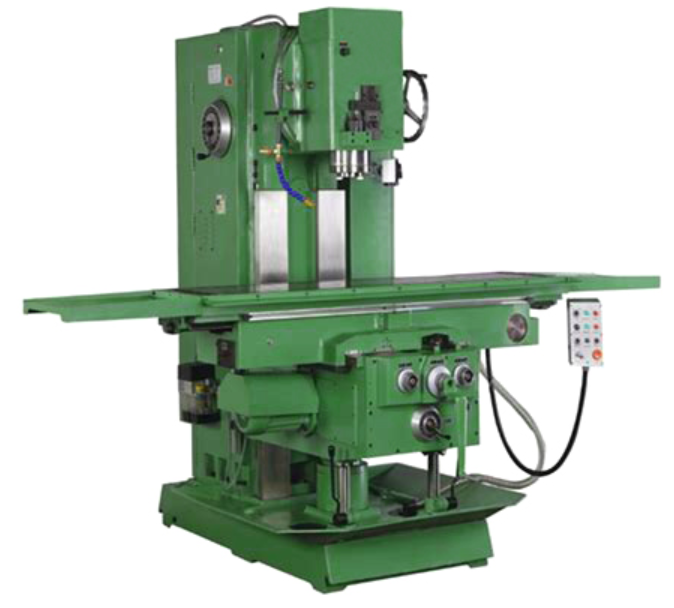

Vertical Knee-Type Milling Machine X5050


The main performance characteristics:

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

3. Work bench X. Y.Z  are gear drive automatic feed and manual operation

4. Milling head can be rotated 45 degrees,



Application:

1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,

molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes,

 and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries

of the ideal processing equipment.



Product main technical parameters:



Specifications

Units

X5050

Table size

mm

2000x500

T-type slot  numbers / width /space

mm

5-18-80

Max. load of table

kg

1500

Longitudinal travel (manual/auto)

mm

1530/1520

Transverse travel(manual/auto)

mm

360/345

Vertical travel (manual/auto)

mm

630/610

Cutting feed speed

mm/min

X.Y:16-800. Z:5-250

Rapid feed speed

mm/min

X.Y:3000..Z:1000

Spindle travel

mm

90

Distance between spindle nose and table surface

mm

95-725

Max. swivel angle of table


±45°

Spindle speed step

steps

18

Spindle speed range

rpm

45-1800

Spindle  motor power

KW

15

Overall dimensions

mm

2250x3200x2340

Machine weight

Kg

5200
