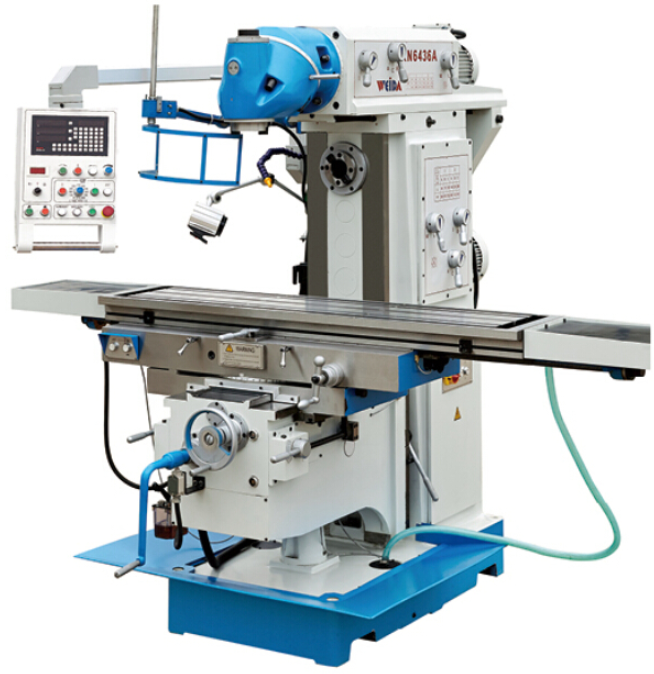

Universal Swivel Head Milling Machine XN6436A


1.The machine is with universal milling head,it can swivel 360 degrees.

2.The table can swivel left and right side 35 degrees.

3.The machine can automatic feed on three axes controlled through one gear box.

4.The ram is movable forward and backward.

5.X,Y,Z servo motor drive

6.The machine is equipped with operation panel which is convenient for the operator.


unitXN6436A
Table sizemm1650x360
T slot no./width/distance  no3/14/95
Max. load of Tablekg300
swivel angle of tabledegree±35º
table Longitudinal travel(manual/auto)mm1300
table Cross travel (manual/auto)mm320
table Vertical travel(manual/auto)mm420
Spindle taper
ISO50
spindle speed /step -- Verticalrpm58-1800/12
                           --Horizontalrpm60-1750/12
swivel angle of swivel headdegree360º
Distance from vertical spindle axis to column surfacemm230-550
Distance from vertical spindle nose to table surfacemm170-580
Distance from horizontal spindle axis to table surfacemm0-420
Distance from horizontal spindle axis to ram bottommm175
ram travelmm500
Longitudinal/cross feedmm / min25-800
Vertical feed /stepmm/min8-267
Longitudinal/cross rapid speedmm / min1200
Rapid Traverse verticalmm/min400
main motorkw5.5(H) 4(V)
(X/Y/Z) feed motorkw1.8
overall dimensioncm255x216.1x210.0
Machine weightkg2850
