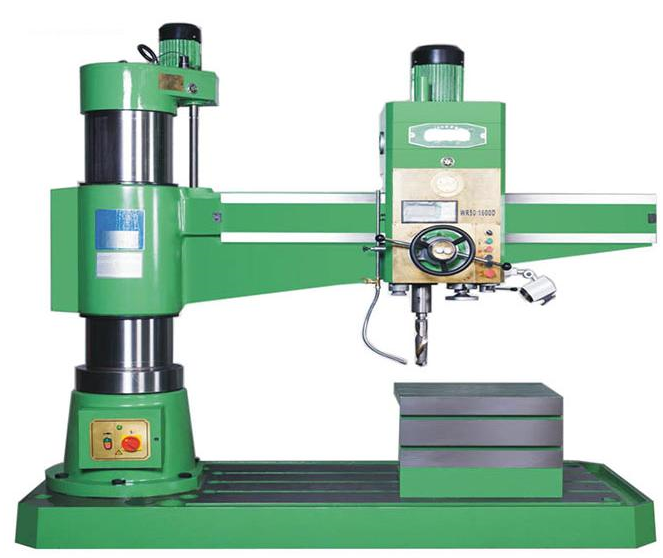

Hydraulic Z3040x16/2 Z3050x16/2 ZQ3050X20/2



Characters:

●With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily

engaged and disengaged at any time.
● With safe and reliable feed safety machgine, all parts easy operation and change.
● All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change

 of spindle aachiered by hydrandic power, cmle is sensitna owet nelile.
● Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability
high quality.
●Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia

for basic parts.
● Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, nsuring

high strength and durability.
● Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

Model


Z3040x16/2

Z3050X16/2

ZQ3050X20/2

Max. Drilling capacity

mm

40

50

50

Distance spindle axis to column generating line

mm

350~1600

350~160

350~2000

Diameter of column

mm

350

350

350

Spindle taper


MT4

MT5

MT5

Spindle travel

mm

315

315

315

Spindle speeds range

r/mm

25~2000

25~2000

25~2000

Spindle speeds series


16

16

16

Range of Spindle feeds

mm/r

0.04~3.2

0.04~3.2

0.04~3.2

Mpindle Spindle feeds


16

16

16

Distance spindle nose to working  surface of base

mm

350~1250

320~1220

320~1220

Dimension of worktable

mm

630X500X500

630X500X500

630X500X500

Dimension of base

mm

2400X1000X200

2400X1000X200

2400X1000X200

Overall Size

mm

2500X1060X2650

2500X1060X2650

2900X1060X2650

Power of Main motor

mm

3

4

4

G.W/N.W

kg

3650/3400

3650/3400

3850/3550

Packing dimension

cm

260X112X260

260X112X260

300X112X260
