Single-column series lift—QJY-S4

Single-column series lift—QJY-S4

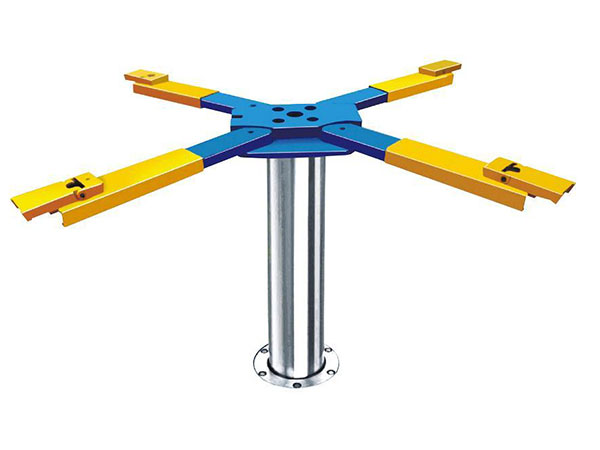

QJY-S4 pneumatic and hydraulic single post inground car washing lift

·Pneumatic hydraulic drive

·Direct drive no need power supply

·Only require connecting air source which has the pressure more than 5bar

·Capacity can be 2.0T~3.5T according to different intake pressure

·When the pressure is 5bar, the capacity can be 2330KG

·When the pressure is 8bar, the capacity can be 3500KG

·Convenience in use according to different car type

CapacityLift Height (mm)Min. Height (mm)Adaptor lengthAir operatorPlunger diameterNet weight
3500kg1805110500-900mm5-10bar270mm670kg
