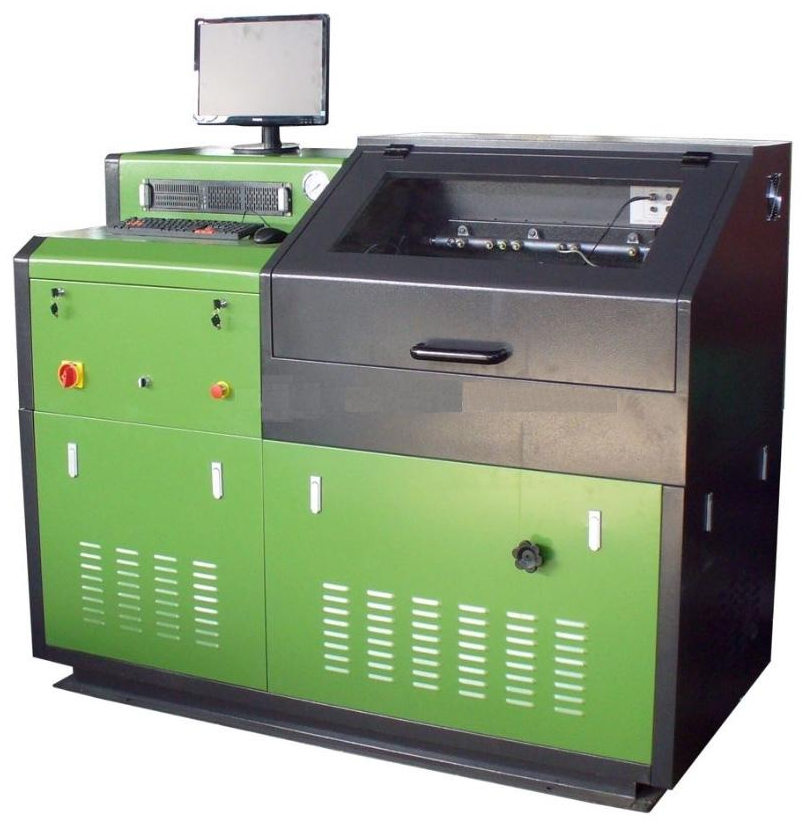

CR3000A-708 COMMON RAIL SYSTEM TEST


Product Application
1. Full-automatic operation procedure, save the time to set up the data.

2. Germany flow sensor: flow range 0.008-2L/min, test precision 0.5%.
3. Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.
4.Rail pressure is controlled accurately by DRV and ZME valve.
5. Original Bosch CP3 common rail pump is equipped.
6. Industrial computer with windows system.
7 Rich database:640 types of data.
8. Self-protection under following status:overheat, oil-mist, overpressure, low oil level
9. Remote control is convenient for software upgrading and after-sale service.
10. Frequency converter is used to change the rotation speed.
11. Iron fuel tank with industrial air-conditioner inside .
12.support Multi-language

SPECIFICATIONS

CR3000A-708 common rail injector and pump test bench

Outpower

7.5kw /11kw/15kw/18.5kw/22kw

Oil pump rotation speed

0-4000rpm

Test rang of rail pressure

0-2500bar

Test precision of rail pressure

±0.5Mpa

Test precision of flow sensor

0.5%

Measuring rang of flow sensor

0.008-2L/Min

Temperature of test oil

40±2℃

Filter precision of test oil

less than 5μ

Capacity of tank

80L

Main Features
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.
3.Injector test: measure the injected fuel quantity & return volume under full-loaded,idling, pre-injection and Emission status.
4. Check the sealing performance of the injector.
5. Check the solenoid valve.
6. Clean the injector and pump before testing.
7. Clean the ZME separately.
8. Testing 6 oil injectors in one setup.
9.User can add and edit the data by themselves.
10.Save and print the testing results & customer information.
11.Support software upgrading.
