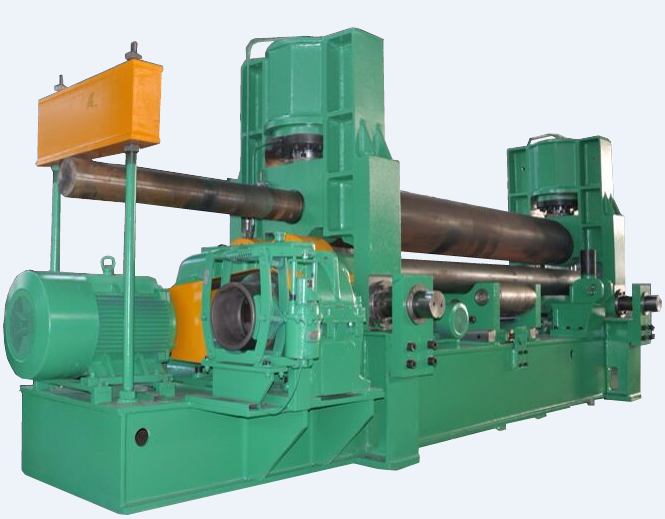

W11S Upper Roller Universal Rolling Machine 3 Rolls



Performance:

W11s series upper roller universal rolling machine can pre-bending and rolling to proceed the plate, with high

rolling precision, no need to use any subsidiary equipment, less investment. This machine is hydraulic three rollers

machine, it used to roll the low carbon steel (such as Q235-B20g20R), and Low alloy steel to cycle shape in normal

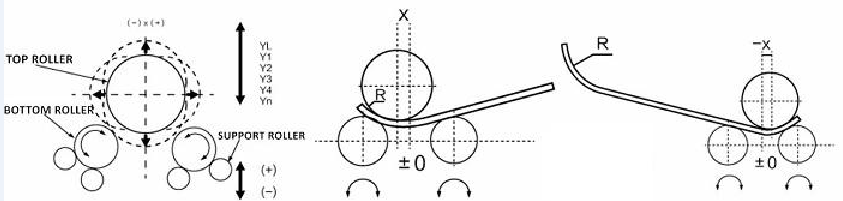

temperature.The upper roller can be moved horizontal and level.When cycle, to bring two lower rollers running

through motor and reducer.Because the standard height of lower roller is unchanged, it is convenience to feeding

and operating

1.preeminence goods precision

2.unique curved technology,the end part of high accuracy has in advance curved,no back angle when bending

   continuously,curved course

3.man-machine interaction control interface,efficent intelligent operation

4.physical curved technology software ,man machine interaction window,curved course automatic compensation

5.single person operation ,efficent safeconvenient

6.rich curved shape,have rolling O type,U type,multistage R and other different shape

7.the option of much type is made,according to use or user requirement ,have economic type number to show

   type and the CNC type option of numerical control

Model

Max. Roll Thickness

(mm)

Max.Roll Width

(mm)

Top Roller Diameter

(mm)

Bottom Roller Diamater

(mm)

Central Distance

(mm)

Motor

(Kw)

W11S-8x1500

6

1500

175

125

160

3

W11S-8x2500

8

2500

235

135

180

4

W11S-10x3000

10

3000

280

145

200

5.5

W11S-16x2000

16

2000

270

150

245

7.5

W11S-20x3000

20

3000

375

200

330

18.5

W11S-25x2500

25

2500

380

220

360

22

W11S-30x3000

30

3000

450

250

400

30

W11S-35x3000

35

3000

510

275

460

45

W11S-40x4000

40

4000

630

340

610

55

W11S-45x4000

45

4000

660

360

650

75

W11S-50x5000

50

5000

790

420

780

90

W11S-55x3000

55

3000

620

360

650

75

W11S-60x3000

60

3000

650

380

7000

75

W11S-70x3000

70

3000

710

420

780

75

W11S-80x3000

80

3000

770

460

880

90

W11S-85x3000

85

3000

800

480

920

110

W11S-125x3000

125

3000

960

600

1120

160

W11S-110x4000

110

4000

990

600

1120

160

W11S-120x4000

120

4000

990

640

1280

150
