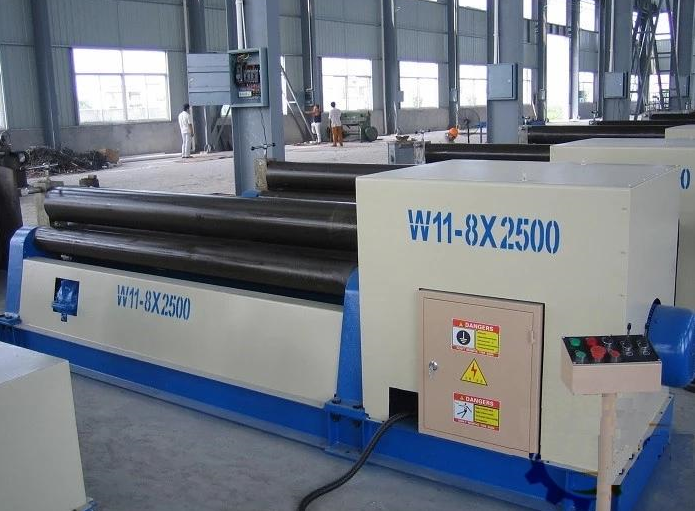

W11 Mechanical Symmetrical Rolling Machine 3-roller


Main characteristic

The aircraft structure for the symmetric three-roll, the upper roll which do up and down movements

is in the center of the two down rollers, landing exercise by the hydraulic cylinder piston in the rote

of the hydraulic fluid botained for hydraulic transmission; the two down rolls for the next rotation.

Through the reducer output under the roller gear with the gear mesh for the provision of rolling

plate torgue. The disadvantage is the plate with the other end of the pre-bending device.



Main parts:

This machine is mianly composed of working rollers, large forgings and welding structure

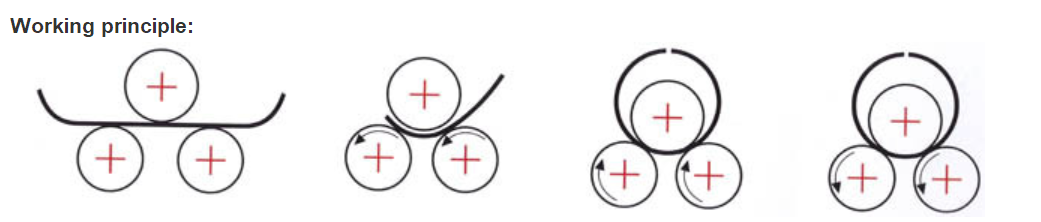

Features:

1.the upper roller moves vertically along the perpendicular between tow lower rollers

2.the two lower rollers are ratating and transfering torsion to plate materails so that the metal

sheets can be pulled into the roller clearance

3.the machine can rolling metal plates into various shaps, such as arch, round and so on.

Whole bending working is based on the rotary deformation. Our rolling machines are widely

used in chemical, cement,shipbuilding, boiler,aviation, water control project, power transmission

tower, metal structure industry and the industry of making machinery.

Model

Max. thickness

Max. width

Bending

speed

Workpiece

Min. Dia.

Top roller

Dia

Bottom roller Dia.

Dis. bottom rollers

Main motor

Net weight

(About)

W11-8*2000

8mm

2000mm

5m/min

480mm

190mm

170mm

220mm

5.5kw

3300kgs

W11-8*2500

8mm

2500mm

4m/min

600mm

240mm

180mm

280mm

7.5kw

4200kgs

W11-8*3000

8mm

3000mm

4m/min

600mm

240mm

180mm

280mm

11kw

5200kgs

W11-10*2000

10mm

2000mm

4m/min

550mm

220mm

170mm

250mm

7.5kw

4100kgs

W11-10*3000

10mm

3000mm

4m/min

650mm

260mm

220mm

340mm

11kw

5800kgs

W11-12*2000

12mm

2000mm

4m/min

600mm

240mm

180mm

280mm

7.5kw

4800kgs

W11-12*2500

12mm

2500mm

4m/min

650mm

260mm

220mm

320mm

11kw

5800kgs

W11-12*3000

12mm

3000mm

4m/min

700mm

280mm

240mm

360mm

15kw

8000kgs

W11-16*1500

16mm

1500mm

5m/min

600mm

240mm

180mm

280mm

7.5kw

4200kgs
