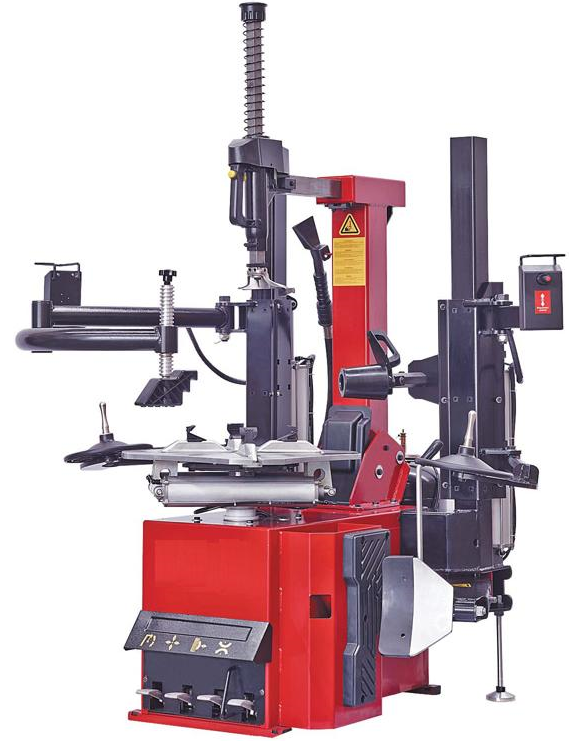

TC650S / TC650SA Automatic Type


Feauture:

●For standard, low-profile and run-flat wheels of car and light commercial vehicles

●Machine post tilted backwards / forwards upon pedal operation (pneumatic) and pneumatically locked in working position

●Locking rim from 10”-24”

●Pedal assembly may draw from front cover

●Double help arm

●Self-centring four-jaw turntable controlled via two clamping cylinders for correct clamping of the wheel

●Plastic protection inside jaws and on mounting head to avoid damage to alloy rims

●Large bead breaker blade

●Bead breaker with large anti-skid rubber pad

A  Rear air tank serves as tubeless tyre inflation device


Specification:

Motor power: 0.75kw/1.1 Kw

Power supply:220V/380 V/110V

Max. wheel diameter : 41"(1040 mm )

Max wheel width:14"(355mm)

Outside clamping:10"~21"

Inside clamping:12"~24"

Air supply: 8bar-10bar ;

Noise level: <70 dB.
