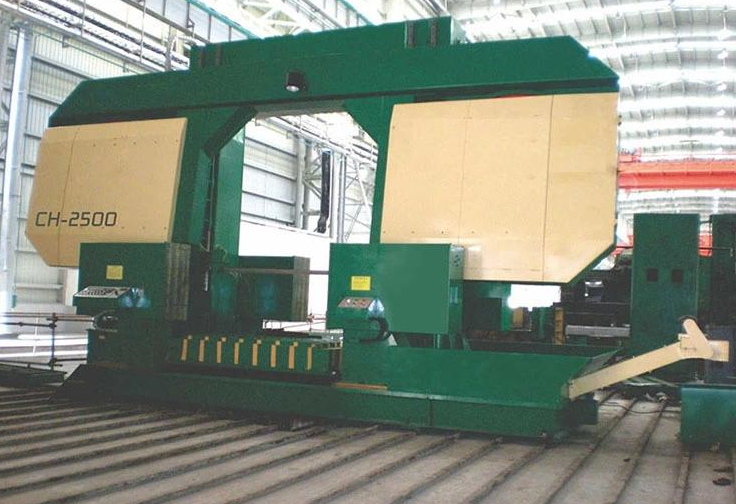

CH-2500 Double Column Semi Automatic


Feature:

Double-column portal horizontal band sawing machine series is a kind of large-and middle sized machine in automatic

 and semiautomatic model widely uses for cutting ferrous-andnon-ferrous metals. It has the advantages of narrow

sawing cut, material saving, energy saving, high sawing precision, convenient operation and high.


Specification:

Model

CH-1600

CH-1800

CH-2500

Cutting capacity

Round: Φ1600mm

Rectangular: 1600x1600mm

Round: Φ1800mm

Rectangular: 1800x1800mm

Round: Φ2500mm

Rectangular: 2500x2500mm

Blade speed

10 – 50  m/min inverter

10 – 50  m/min inverter

10 – 50  m/min inverter

Blade size

80x1.6x15380mm

80x1.6x17000mm

80x1.6x21000mm

Motor main

18.5 kw

18.5 kw

22 kw

Motor hydraulic

5.5kw

5.5kw + 1.5kw

7.5kw + 1.5kw

Coolant pump

0.37kw

0.37kw

0.37kw

Workpiece clamping

Hydraulic vise

Hydraulic vise

Hydraulic vise

Blade tensioning

Hydraulic

Hydraulic

Hydraulic

Main drive

Gear drive

Gear drive

Gear drive

Table height

700kgs

1050kgs

1050kgs

Machine size

6800x2300x4900mm

6800x4000x4100mm

10520x4940x5880mm


Standard equipment:

blade cleaning brush

working light

saw frame height selector gauge

hydraulic blade tension

one piece of bi-metal saw blade

one set of tools with toolbox

power roller table 2M long

laser projector

inverter



Optional equipment:

Variable vise pressure

Automatic chip conveyor

Power roller table 2M long

Hydraulic shuttle table feeding 2M
