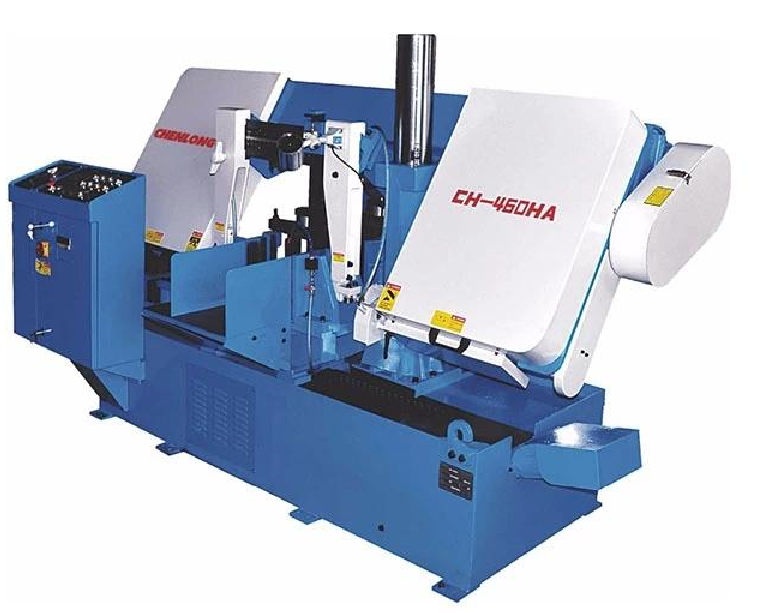

CH-460HA Full Automatic Double Column


Feature:

The automatic and semi-automatic dual-column horizontal sawing machine series designed by our company

is incorporated with advantages of many other manufactures, featuring reasonable structure, stable and reliable

performance, and high precision. It is ideal equipment for sawing cutting of medium small lots.


Specification:

Model

CH-280HA

CH-360HA

CH-460HA

CH-560HA

Cutting   capacity

Round: Φ280mm

Quadrate: 350x280mm

Bundle cutting:   200x130mm

Round: Φ360mm

Rectangular: 360x360mm

Bundle cutting:   210x150mm

Round: Φ460mm

Rectangular: 460x460mm

Bundle cutting:   310x230mm

Round: Φ560mm

Rectangular: 560x560mm







Saw blade

speed

20 – 80  m/min inverter

size

27x0.9x4110mm

34x1.1x4420mm

41x1.3x5450mm

41x1.3x6200mm

guides

Carbide and   bearing blade guides

cleaning

Power wire   brush & flood coolant

tension

hydraulic

Motor power

Blade

2.2 kw

4 kw

4 kw

5.5 kw

hydraulic

0.75kw

0.75kw

0.75kw

1. 5kw

coolant

0.06kw

0.06kw

0.06kw

0.06kw

Multiple feed

400mm x 9 times

Work vise

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Table height

1500kgs

2100kgs

3500kgs

3800kgs

Machine size

2200x1900x1700mm

2500x2200x1750mm

2850x2200x1900mm

3400x2200x200mm


Standard equipment:

Power blade cleaning brush

Working light

Automatic feed roller

Automatic work height control

One piece of bi-metal saw blade

One set of tools with toolbox

Automatic chip conveyor

Operation manual

NC control (10 set cutting process)

Roller rack 2M long

Hydraulic blade tension

Inverter

Bundle cutting device



Optional equipment:

Roller rack 2M long

Variable vise pressure
