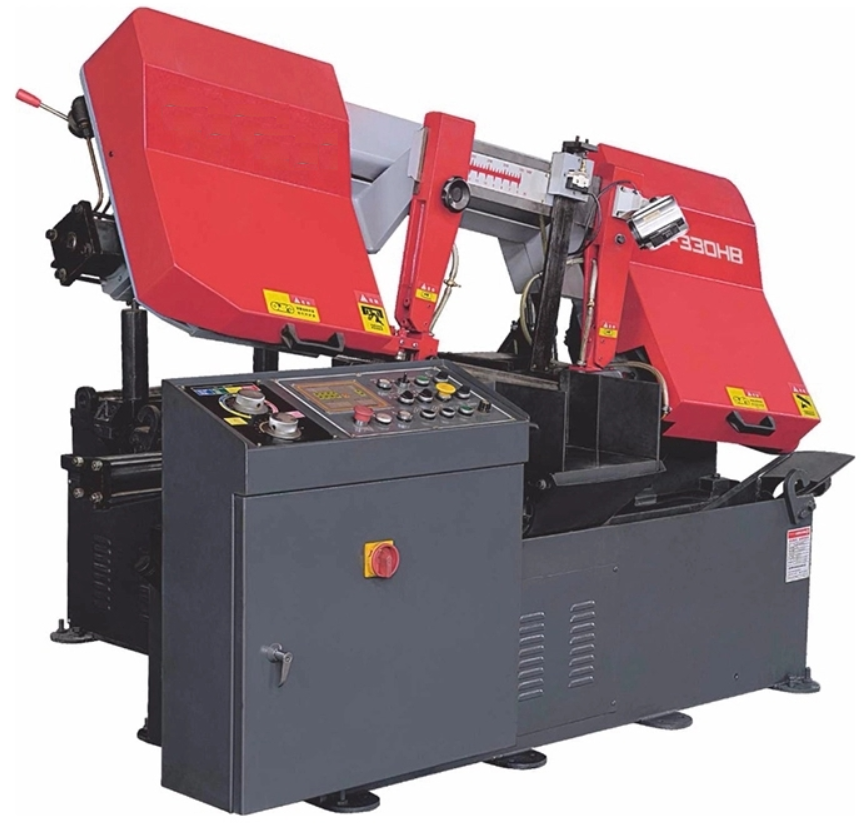

CS-330HB Pivot Fully Automatic


Feature:

Mainly used for cutting various ferrous metal and non-ferrous metal.the structure of the machine tool is reasonable

with stable and reliable performance and high precision. It is ideal equipment for material sizing of medium/small lot.


Specification:

Model

CS-280HA (Pivot Full Auto)

CS-330HB

Cutting   capacity

Round: Φ280mm

Quadrate: 350x250mm

Bundle cutting:   200x100mm

Round: Φ330mm

Quadrate: 330x330mm





Saw blade

speed

20 – 90  m/min

20 – 80  m/min

size

27x0.9x3505mm

34x1.1x4240mm

guides

Carbide and   bearing blade guides

cleaning

Power wire   brush & flood coolant

tension

Manual

hydraulic

Motor power

Blade

2.2 kw

3 kw

hydraulic

0.75kw

0.75kw

coolant

0.06kw

0.06kw

Multiple feed

400mm x 9 times

Work vise

Hydraulic

Hydraulic

Table height

1300kgs

1500kgs

Machine size

2400x2050x1700mm

2040x2030x1400mm


Standard equipment:

Power blade cleaning brush

Working light

Automatic feed roller

Automatic work height control

One piece of bi-metal saw blade

One set of tools with toolbox

Automatic chip conveyor

Operation manual

Inverter

Hydraulic blade tension

NC control



Optional equipment:

Roller rack 2M long

Variable vise pressure ( cut tube)
