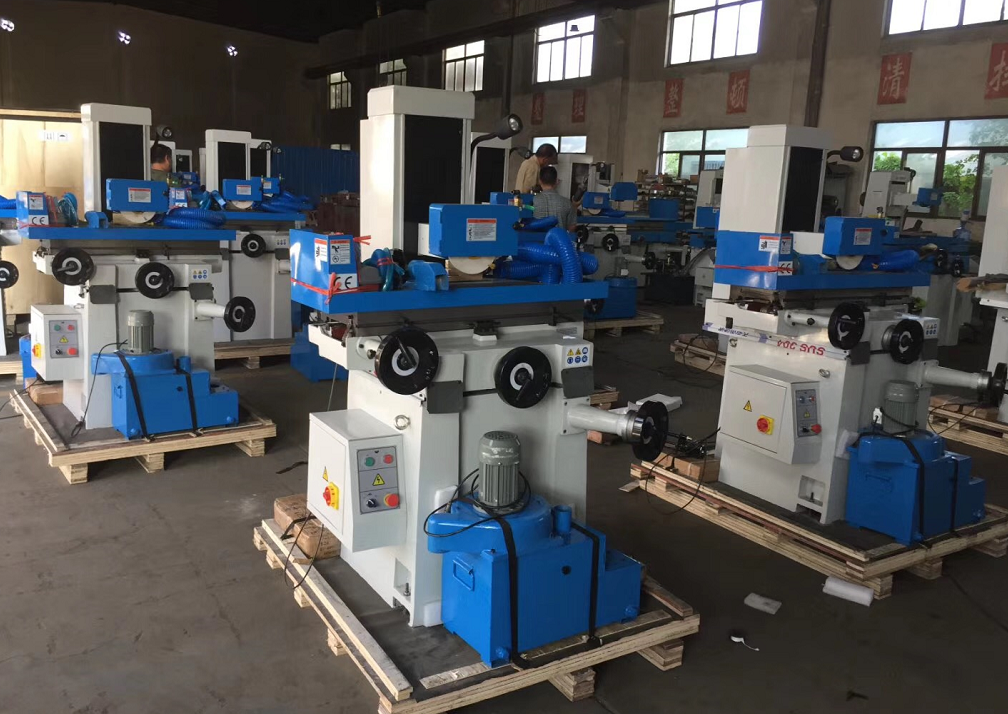

MY4080 MY40100 MY40125 Hydraulic Grinder


Characteristics of machine tools

1. The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.

2. Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.

3. The main mechanical valve is a special valve grinder, which is divided into two parts, the mechanical commutation control and

    throttle control. Throttle control part and unloading function, can realize the station start and stop.

4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user

     needs with a permanent magnet sucker or electromagnetic sucker.


Specification:

Model

Unit

MY4080

MY40100

MY40125

Max workpiece to be ground

mm

800*400*405

1000*100*405

1250*400*405

Max table vertical movement

mm

820

1020

1270

Front and rear wheel feed

mm

440

440

440

Distance from table surface to spindle center

mm

580

580

555

Max work load

kg

400

400

450

Number of T-Slot

mm*n

18*3

18*3

18*3

Table speed

m/min

0-26

0-26

0-26

Before and after automatic feed (CVT)

mm

0.5-20

0.5-20

0.5-20

Front and rear wheel feed

mm

0.02/Graduation 4/revolution

0.02/Graduation 4/revolution

0.02/Graduation 4/revolution

Wheel size (dia*width*bore)

mm

350*32*127

350*32*127

350*32*127

Spindle speed

r/min

1450

1450

1450

Each ring of lifting weight tuning mechanism

mm

0.04

0.04

0.04

Fine tuning mechanism grid feed rate

mm

0.001

0.001

0.001

Spindle motor

kW

5.5 (Y132S-4 B5)

5.5 (Y132S-4 B5)

5.5 (Y132S-4 B5)

Machine size (L*W*H)

mm

2260*1790*1917

2260*1790*1917

3100*1790*1917

Packing size (L*W*H)

mm

2400*1990*2180

2800*1990*2180

3300*1990*2180

N.W./G.W.

Kg

3000/3300

3800/4200

4200/4600
