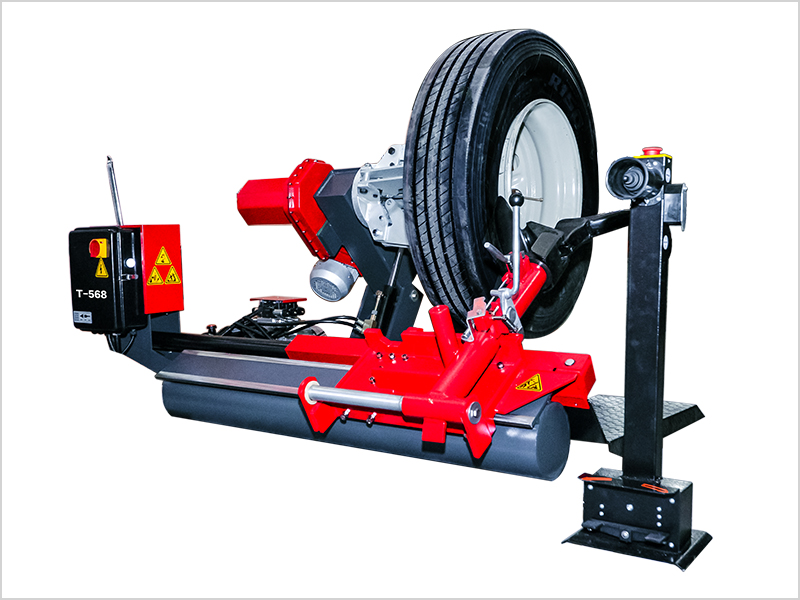

Truck Tyre Changer T568


TECHNICAL DATA

Rim Diamter
14" - 26"
Max.wheel weight
500kg
Max Wheel Width
780mm
Max Tyre Diameter
1600mm
Hydraulic Pump Motor
1.5KW 380V - 3PH(220V Optional
Gearbox Motor
2.2KW 380V - 3PH(220V Optional)
Bead Breaker Force2500kg
Max.Torque6457N.m
Operation Control Voltage24V
Machine Weight Approx
517kg
Overall Dimensions Approx
2500×2000mm
Power220/400V  50/60HZ 1P/3P Optional

PRODUCTS INTRODUCTION

· Semi-Auyomatic truck tyre changer t568 universal

· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional

OPIONAL ACCESSORIES





Alu alloy rims protection ringsAlu alloy rims protection setTubeless roller

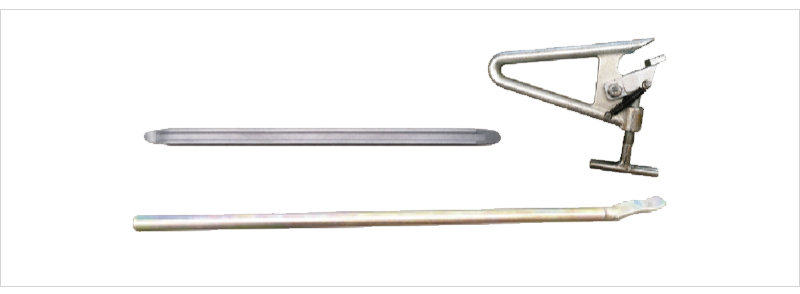

STANDARD ACCESSORIES

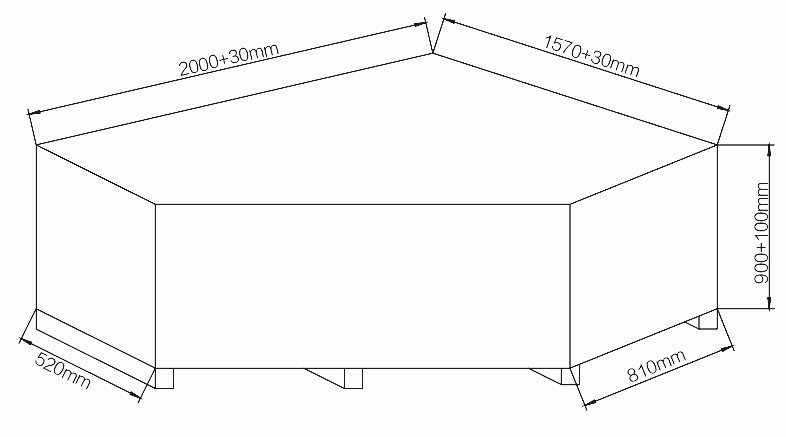

WEIGHT&DIMENSIONS
Model:T568
Gross Egight(kg):633
Outside Dimension L×W×H(mm):2030×1580×1000
