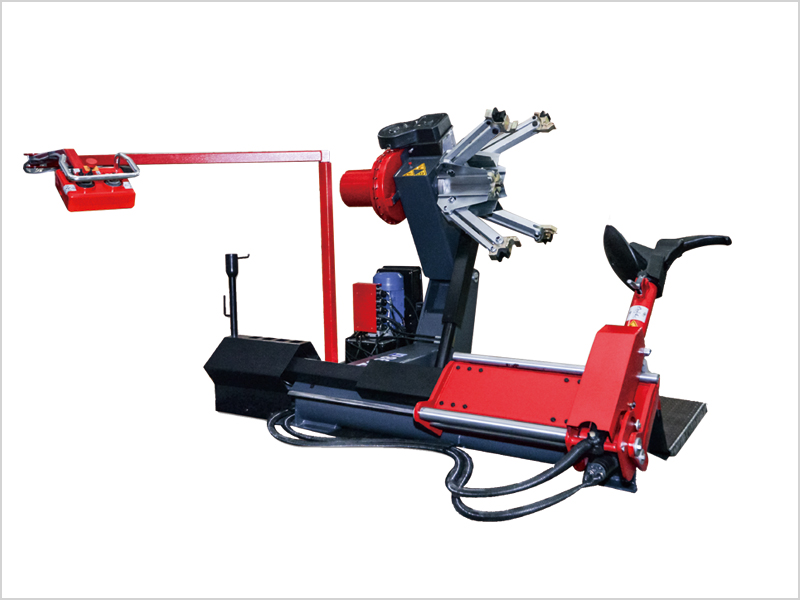

Truck Tyre Changer T698


TECHNICAL DATA

Rim Diamter
14" - 42"
Max.wheel weight
1600kg
Max Wheel Width
1050mm
Max Tyre Diameter
2300mm
Hydraulic Pump Motor
2.2KW 380V - 3PH - 50HZ(220V Optional)
Gearbox Motor
2.2KW 380V - 3PH - 50HZ(220V Optional)
Bead Breaker Force3300kg
Operation Control Voltage24V
Machine Weight Approx≈760kg
Overall Dimensions Approx
2500×2000mm
Power
220/400V  50/60HZ 1P/3P Optional
Noise Level≤70db
Temperature
0℃~40℃


PRODUCTS INTRODUCTION
· Fully - Automatic universal truck tyre changer T698 for industrial、agricultural and earthmoving wheels
· Rim capacity 14” - 42"
· Double rotational speeds optional
· Italian pump optional

PRODUCTION DETAILS





OPTIONAL ACCESSORIES



Alu alloy rims protection ringsAlu alloy rims protection set
Tubeless roller

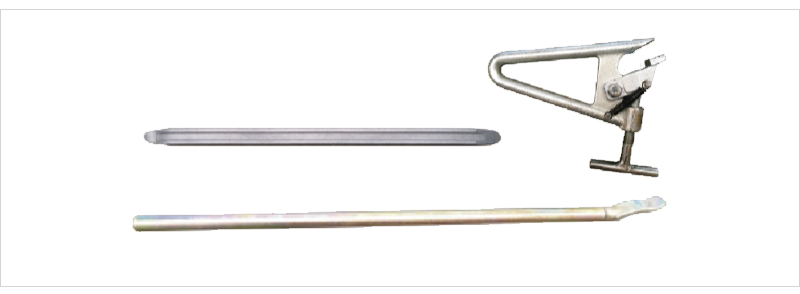

STANDARD ACCESSORIES

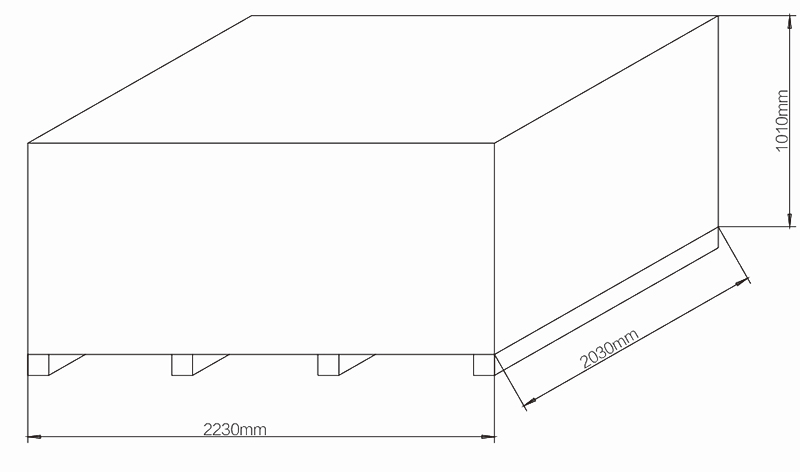

WEIGHT&DIMENSIONS
Model:T698
Gross Weight(kg):850
Outside Dimension L×W×H(mm) 2230×1970×1050
